Model |
MW22-11090L/G |
MW22-12090L/G |
MW22-12595L/G |
MW22-15065L/G |
MW22-140100L/G |
MW22-15075L/G |
MW22-17090L/G |
|
|
Overall dimension (mm) |
A |
1140 |
1230 |
1280 |
1530 |
1400 |
1530 |
1700 |
|
B |
900 |
880 |
950 |
370 |
1000 |
770 |
900 |
|
|
C |
892 |
810 |
1230 |
710 |
1100 |
790 |
815 |
|
|
D |
-- |
-- |
400 |
-- |
600 |
-- |
-- |
|
|
E |
-- |
-- |
175 |
-- |
125 |
-- |
-- |
|
|
F |
-- |
-- |
290 |
-- |
200 |
-- |
-- |
|
|
G |
-- |
-- |
50 |
-- |
38 |
-- |
-- |
|
|
Mass (kg) |
3020 |
3250 |
2830 |
2330 |
4100 |
2900 |
3500 |
|
|
Current (A) |
31 |
29.6 |
35.9 |
32.6 |
45.5 |
27.1 |
50 |
|
|
Power (kw) |
6.83 |
6.5 |
7.9 |
7.2 |
10 |
6 |
11 |
|
|

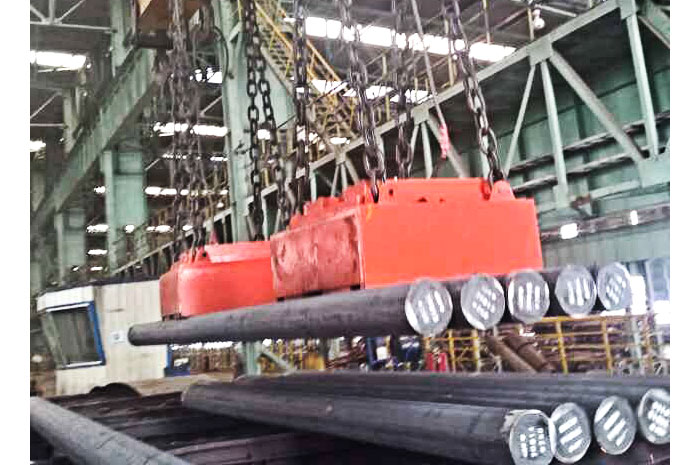

Example for lifting capacity (combination of two units) |
Blooming billet (mm) |
200 ×200 ×12000 4 Pieces |
115 ×115 ×20500 8 Pieces |
256 ×295 ×12000 4 Pieces |
300 ×300 ×7000 2 Pieces |
115 ×115 ×21000 8 Pieces |
130 ×130 ×8000 8 Pieces |
150 ×150 ×12000 10 Pieces |
