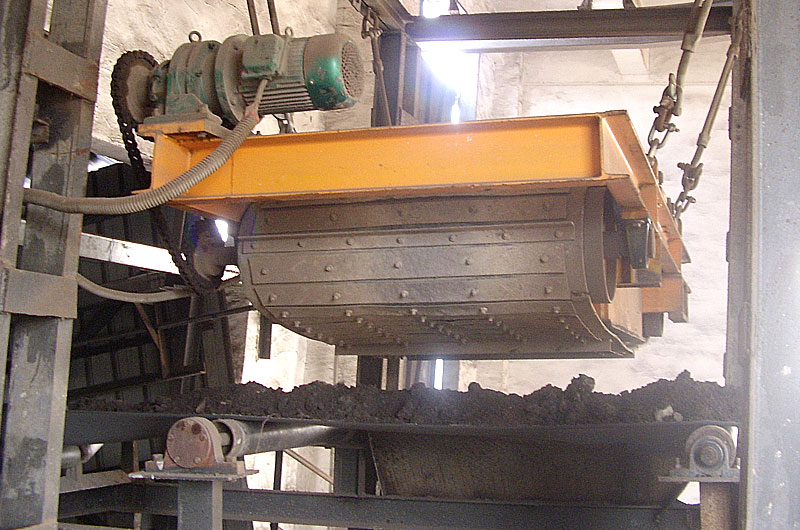

As the automatic suspended Magnet never requires cleaning, there is no need to stop the conveyer. This is useful where the Magnet has to remove large quantities of tramp iron from the material to be cleaned. There is no danger of tramp iron dropping back onto the conveyer and recontaminating the material in process. The Cross Belt Magnetic Separator automatically discharges removed iron at right angles to the main conveyer travel. This separator can be installed anywhere along the conveyer line, and in some applications at an angle over the material discharge.
|
Technical Parameter RCDD |
||||||||
|
Model |
Erection height T(mm) |
Belt width(mm) |
voltage(v) |
power(kw) |
O.D.(mm) |
Driving power(kw) |
weight(kg) |
Commutation Controlling |
|
MC12-5060L(RCDD-4) |
160 |
400 |
110 |
1.03 |
2300 |
1.5 |
1074 |
SSTM-1.5D1-D |
|
MC12-6070L(RCDD-5) |
170 |
500 |
110 |
1.4 |
2400 |
1.5 |
1074 |
|
|
MC12-7080L(RCDD-6A) |
220 |
600 |
110 |
1.8 |
2550 |
1.5 |
1330 |
SSTM-3.1D1-D |
|
MC12-8090L(RCDD-6) |
250 |
650 |
110 |
2.6 |
2750 |
2.2 |
1470 |
|
|
MC12-90105L(RCDD-8) |
250 |
800 |
110 |
2.9 |
2900 |
2.2 |
2000 |
|
|
MC12-110130L(RCDD-10) |
310 |
1000 |
220 |
4.2 |
3200 |
2.2 |
2700 |
SSTM-6.2D1-D |
|
MC12-130145L(RCDD-12) |
350 |
1200 |
220 |
5.8 |
3460 |
4 |
4200 |
|
|
MC12-150175L(RCDD-14) |
410 |
1400 |
220 |
8.2 |
3800 |
4 |
6020 |
SSTQ-9.3D1-D |
|
MC12-165190L(RCDD-16) |
450 |
1600 |
220 |
9.8 |
3850 |
4 |
8260 |
SSTQ-12D1-D |
|
MC12-180210L(RCDD-18) |
490 |
1800 |
220 |
11.6 |
4400 |
5.5 |
7900 |
|
|
MC12-230230L(RCDD-20) |
550 |
2000 |
220 |
22.5 |
4600 |
5.5 |
15500 |
SSTQ-25D1-D |
|
MC12-250250L(RCDD-22) |
550 |
2200 |
220 |
25 |
4800 |
7.5 |
17500 |
|
